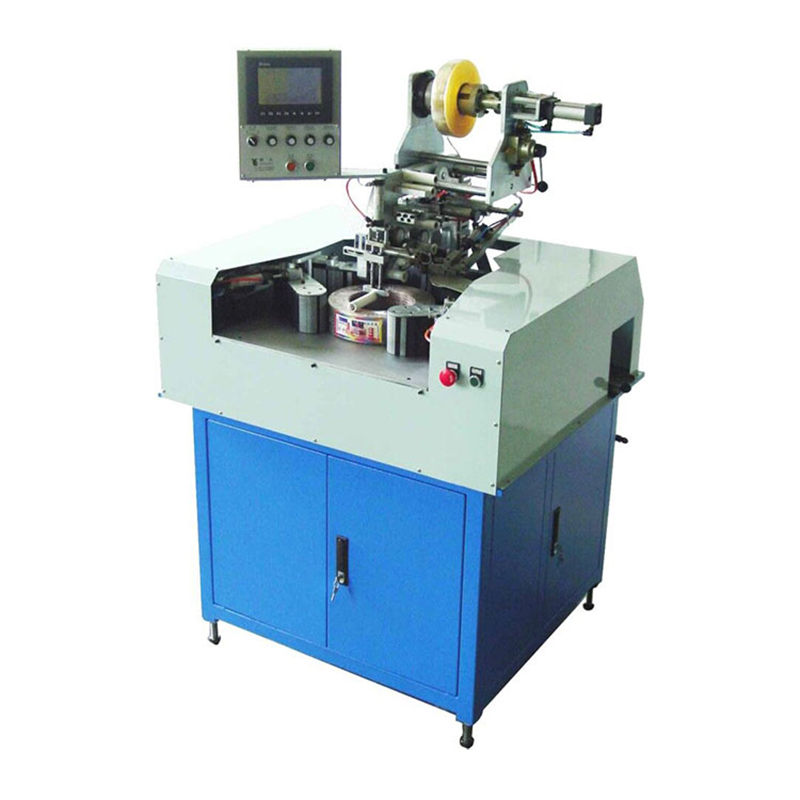

Auto-Wrapping Machine For Circular Object

Put circular object on the machine can automatically wrap them. Usually PVC tape and other materials are used for packaging‌.
Automatic error detection‌: When the equipment fails, it will automatically detect the error and send an alarm to remind the operator to ensure the normal operation and maintenance of the equipment‌.

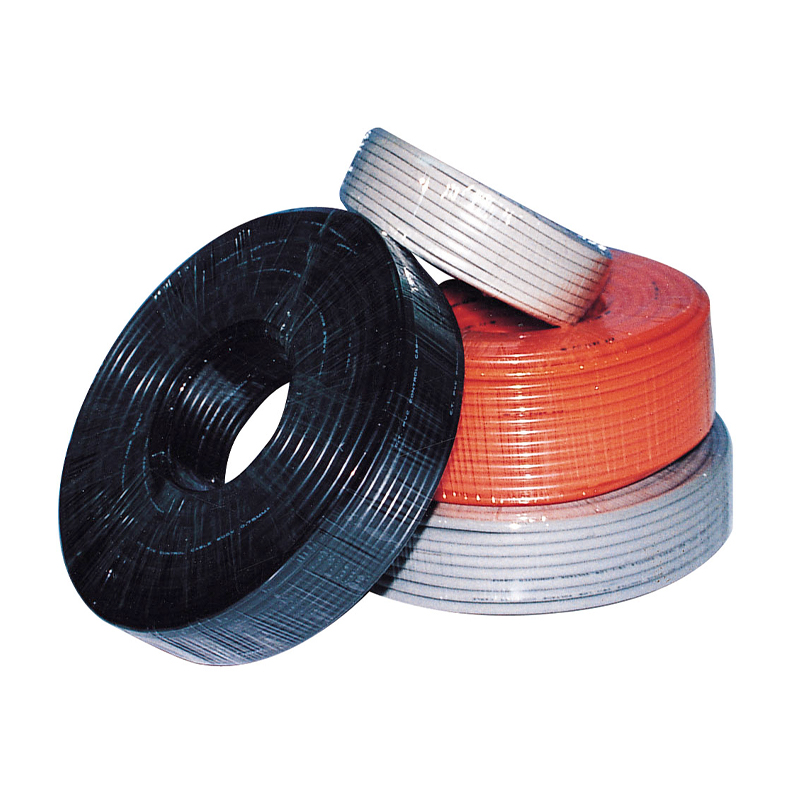

Wide range of application‌: Suitable for circular object, especially for laying wires such as BV, BVR, RVV, UL electronic wires, flower wires and other wire coil‌.
These functions make the rocking plate coating machine have the advantages of high efficiency, automation and labor saving in the wires and cables packaging, and can significantly improve production efficiency and product quality.
It’s semi-automatic machine, the object should be put on the handle plate by manual

Features：
1. High speeds coil wrapping with PVC, PE film, PP woven band, or paper.
2. Screen touch Graphic Operation Terminal makes it easy to operate.
3. The 4 arms carrier, driven by motor, turns the coil smoothly for wrapping.
4. You may input and keep 99 types of coil wrapping data in the PLC memory.

2026 06-23

Automatic Wire Winding Machine: How It Works & How to Choose the Right One
A single operator manually winding wire onto spools can process roughly 200–400 meters per hour. An automatic wire winding machine running at full speed handles that same volume in minutes — with zero variation in coil tension, zero misalignment, and no fatigue-related errors at the end of a shift....
2026 06-16

Cable Insulation Extruder & Wire and Cable Extruder Machine: Full Guide
Bare copper goes in. Insulated, protected, ready-to-ship cable comes out. The machine that makes that transformation possible is the cable insulation extruder — and choosing the right one shapes every metre of cable your factory will ever produce. This guide covers how these machines work, what the...
2026 06-08

Automatic Cable Labeling Machine: Cable Coil Labeling & Label Feeder Guide
On a cable production line running at full capacity, a single labeling station staffed by one operator can become the bottleneck that limits throughput across the entire packaging sequence. Manual cable coil labeling is slow, inconsistent, and—when the operator is fatigued or distracted—prone to c...

Model	Height(mm)	OD(mm)	ID(mm)	Coil weight	Wrapping material	Width of packing material	Thickness of packing material
P100	50-100	180-460	120	35kg	PVC,PE film	40	0.04-0.07
P120	70-120	220-600	140	40kg	PVC,PE film	45	0.04-0.07
P140	70-140	300-600	180	60kg	PVC,PE film	50	0.04-0.07
P180	90-180	320-600	180	80kg	PVC,PE film	60	0.04-0.07
P210	100-210	400-800	250	100kg	PVC,PE film	80	0.04-0.07

Auto-Wrapping Machine For Circular Object Factory

Auto-Wrapping Machine For Circular Object
