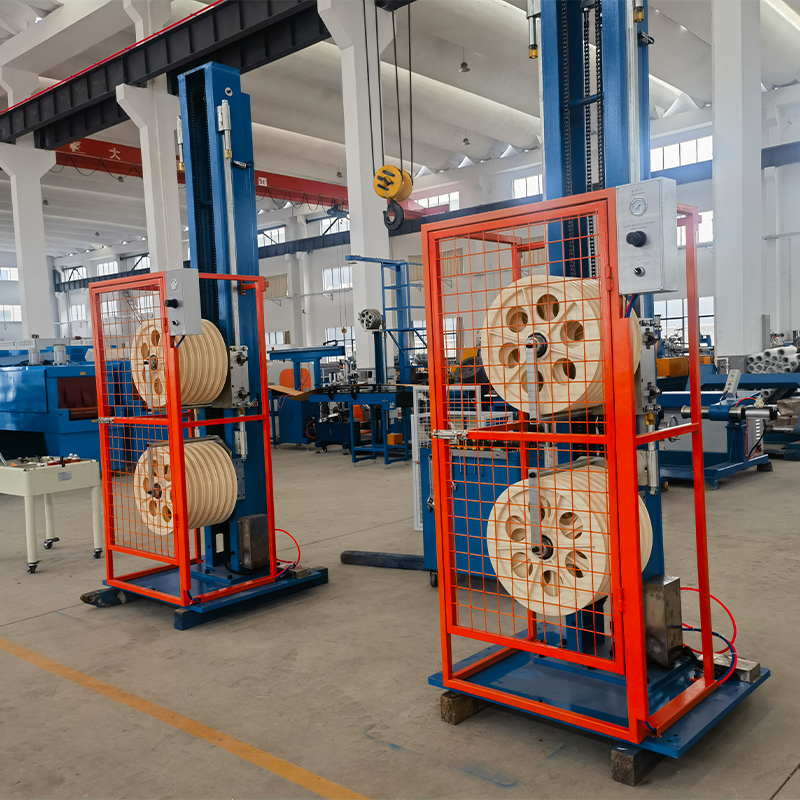

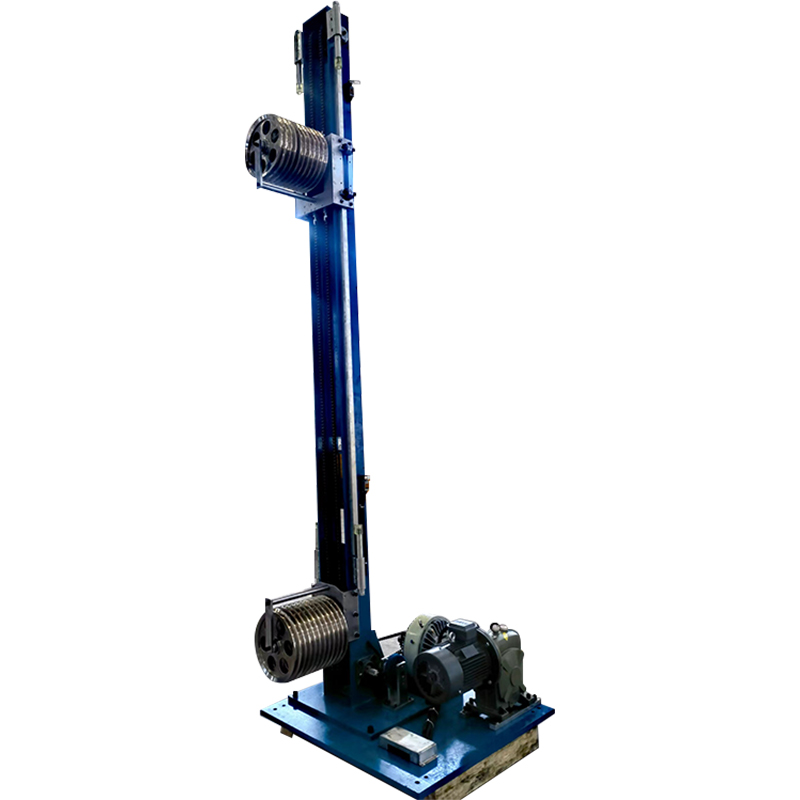

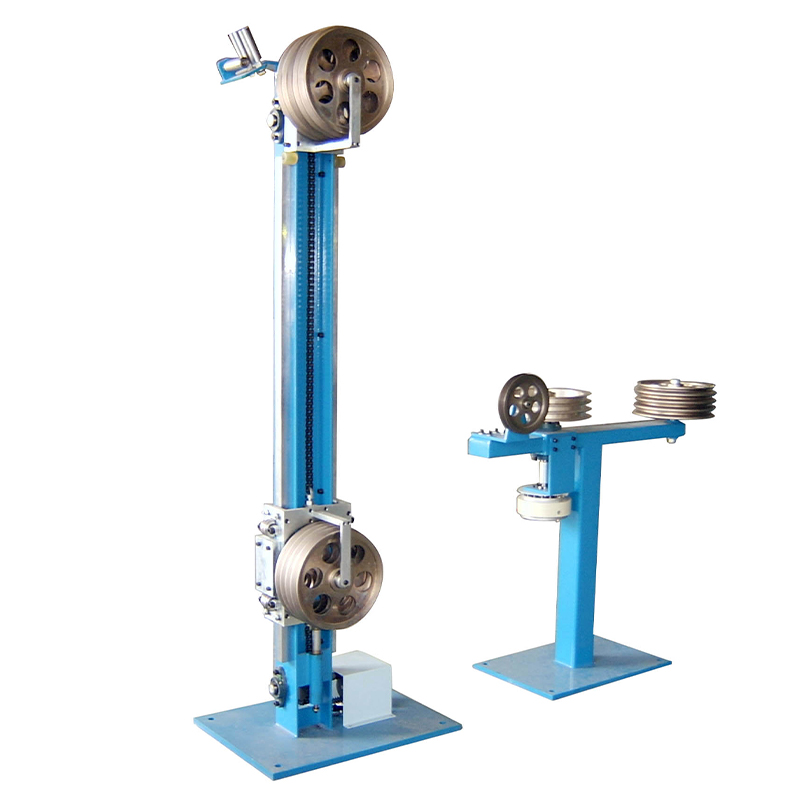

Accumulator Dancer（cable storage rack）

The Accumulator Dancer (Cable Storage Rack) is a professional cable management device engineered to optimize cable processing workflows. Available in vertical and horizontal types, it is perfectly compatible with extrusion, CV and rewind lines, effectively accumulating or controlling cable payoff and take-up during reel changeover.
It excels at supporting and fixing cables, forming a protective barrier to prevent cable wear and damage. By eliminating downtime during reel replacement, it significantly boosts construction efficiency. Its customizable accumulation capacity meets diverse customer requirements, while its rational structure simplifies subsequent cable maintenance and management. Ideal for cable processing scenarios, it provides reliable support for stable production.

The main functions of the (Accumulator dancer)cable storage rack include supporting and fixing cables, protecting cables, improving construction efficiency, and facilitating cable maintenance and management.

Features：
1. Type： Vertical or Horizontal
2. To be installed in an Extrusion, CV’s and Rewind Lines to accumulate or control payoff or Take-up during reel change over.
3. Accumulation capacity could be made according to customer’s requirement.

2026 11-09

Plastic Extrusion Tooling Design Guidelines: Die, Land Length and Tolerance
A 90 mm rigid PVC window profile that gauges within 0.05 mm on the bench can still fail at the customer's assembly line, because the die was cut to nominal geometry instead of shrink-compensated geometry. That single decision separates a line that cruises at 12 m/min from one that fights the operat...
2026 11-02

Plastic Extrusion Process Explained: Melt Control, Dies and Line Design
A 90 mm single-screw extruder running plasticized PVC over a 2.5 mm² conductor will hold jacket wall thickness inside ±4% for hours — until the screen pack loads, melt pressure climbs 6 MPa and output sags, even though nobody has touched a setpoint. Most faults blamed on the die are really heat, pr...
2026 10-26

Choosing Screw Extruders for Cable Lines: Geometry, Output and Payback
A 90 mm extruder rated at 380 kg/h for PVC sheathing often settles at 330 kg/h once the line runs three shifts on a compound with a heavier filler load — and the operator blames the die, the vacuum pump, or the screw. In most specification reviews we sit in on, the mismatch was locked in months ear...

Model	Wheel Dia(mm)	Number of Wheels	Capacity(m)	Cable Dia(mm)
AC-0330V	300	10+11	41	2-6
AC-0335V	350	9+10	38	4-11
AC-0340V	400	7+8	30	6-12
AC-0345V	450	7+8	31	8-13
AC-0350V	500	6+7	24	10-15
AC-0360V	600	6+7	24	12-20

Accumulator Dancer（cable storage rack） Factory

Accumulator Dancer（cable storage rack）
