Cables are the lifelines of modern industries—from telecommunications to energy infrastructure, and from data centers to construction sites. But a cable's life doesn’t begin or end with its use; proper coiling and storage are equally critical to ensure safety, performance, and longevity. In industrial and commercial environments, Cable Coiling Machines are the silent heroes, automating and perfecting the way cables are managed. This article explores how to coil a cable properly and how different types of cable coiling machines support this essential process.


Why Proper Cable Coiling Matters

Improper cable handling often leads to twists, kinks, and even breakage. For example, coiling a cable too tightly can damage its insulation, while inconsistent coiling may result in tangles that can slow down deployment and even risk injury. That’s why proper cable coiling isn’t just a good habit—it’s a necessity, especially in high-volume and high-stakes environments.

Manual vs. Automated Coiling: What's at Stake?

Manually coiling a cable requires precision and patience. One wrong move, and you could introduce twists that compromise the signal transmission in data cables or the safety of high-voltage power lines. An Automatic Cable Coiling Machine, by contrast, ensures consistency, safety, and efficiency. These machines are designed to accommodate various cable types, diameters, and lengths, offering a reliable solution to a repetitive yet critical task.


Types of Cable Coiling Machines and Their Applications

Understanding how to coil a cable properly begins with selecting the right type of coiling machine. There are several categories, each designed to meet specific operational demands.

High-Performance Cable Coiling Machine

These machines are the workhorses of large-scale manufacturing and distribution centers. A High-Performance Cable Coiling Machine can handle long and thick cables at remarkable speeds. Featuring programmable logic controllers (PLCs), servo-driven systems, and precision guiding mechanisms, they ensure exact coiling parameters every time. These are ideal for cable manufacturers that need to maintain tight tolerances and high output.

PVC Cable Coiling Machine

Specialized for handling polyvinyl chloride (PVC) cables, these machines offer temperature and pressure controls that prevent deformation. A PVC Cable Coiling Machine is essential in environments where the cable insulation is sensitive to mechanical stress. Typically used in home wiring and consumer electronics, these machines prevent damage during the coiling process and are often integrated into semi-automatic production lines.

Industrial Cable Coiling Machine

Built for heavy-duty usage, Industrial Cable Coiling Machines are commonly found in sectors such as oil & gas, defense, and construction. These units can coil armoured, shielded, or jacketed cables, often in extreme environments. Equipped with durable frames, automated length counters, and industrial-grade motors, they offer the resilience required in rugged applications.

Small Cable Coiling Machine

Designed for small-batch production and compact spaces, the Small Cable Coiling Machine is a cost-effective solution for startups and workshops. These machines offer manual or semi-automatic operation and are ideal for coiling patch cords, speaker cables, or small-diameter wires. Despite their size, they still offer precise tension control and neat coil formation.

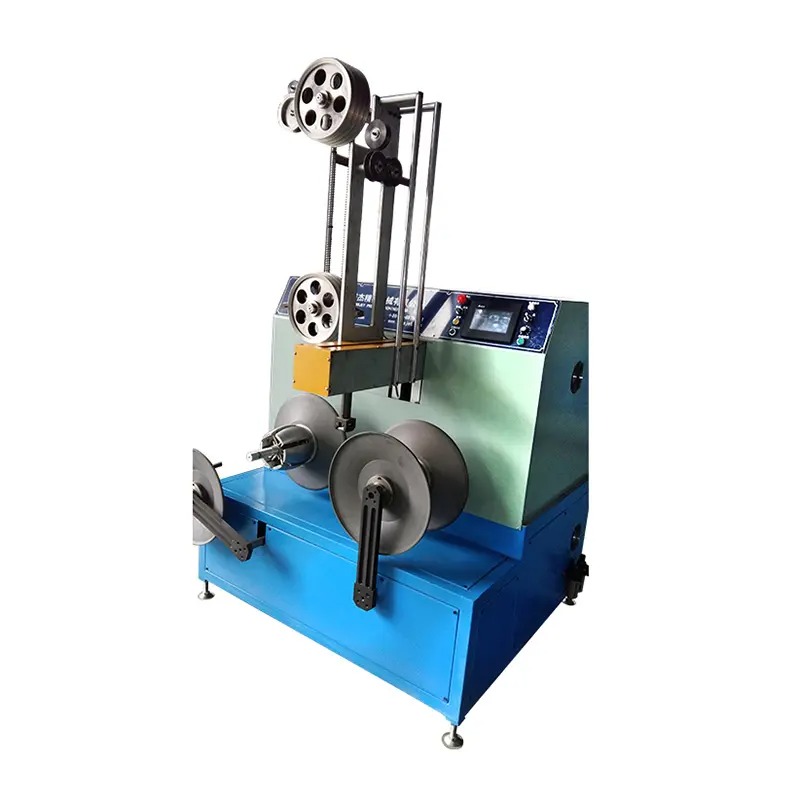

Cable Coiling Machine

Step-by-Step: How to Coil a Cable Properly

Whether you’re using a machine or doing it manually, the principle remains the same: avoid twists, stress, and overlap.

Manual Coiling Method

  1. Hold one end of the cable firmly.

  2. Use the “over-under” technique to avoid twist buildup:

    • First coil: natural loop.

    • Second coil: reverse the loop direction.

  3. Continue alternating until the entire cable is coiled.

  4. Secure the coil using Velcro straps or cable ties.

This method reduces internal tension and is widely used for AV and fiber optic cables.

Coiling with a Cable Coiling Machine

Modern cable coiling machines make the process far more precise and scalable. Here's how they typically operate:

Step Description
1. Feed the cable into the guiding tray.
2. Set parameters like coil diameter, length, and speed.
3. Start the machine; it will auto-align and begin coiling.
4. Automatic stop once the desired coil length is achieved.
5. Eject or pack the coil for further processing.

This process drastically reduces human error and labor costs, while increasing productivity.


Key Features to Look for in a Cable Coiling Machine

Investing in the right machine can save time and ensure operational efficiency. Here’s a breakdown of critical features to consider:

1. Programmable Controls

Look for machines with touch screens or digital panels. These allow users to set different coil parameters like size, tension, and layering.

2. Cable Compatibility

Ensure the machine can handle various cable diameters and materials, especially if you work with PVC cables or thick industrial cables.

3. Speed and Efficiency

A High-Performance Cable Coiling Machine should offer fast output without compromising quality. Some units can produce over 20 coils per hour.

4. Safety Mechanisms

Emergency stops, automatic shutdowns, and overload protection are essential for workplace safety.

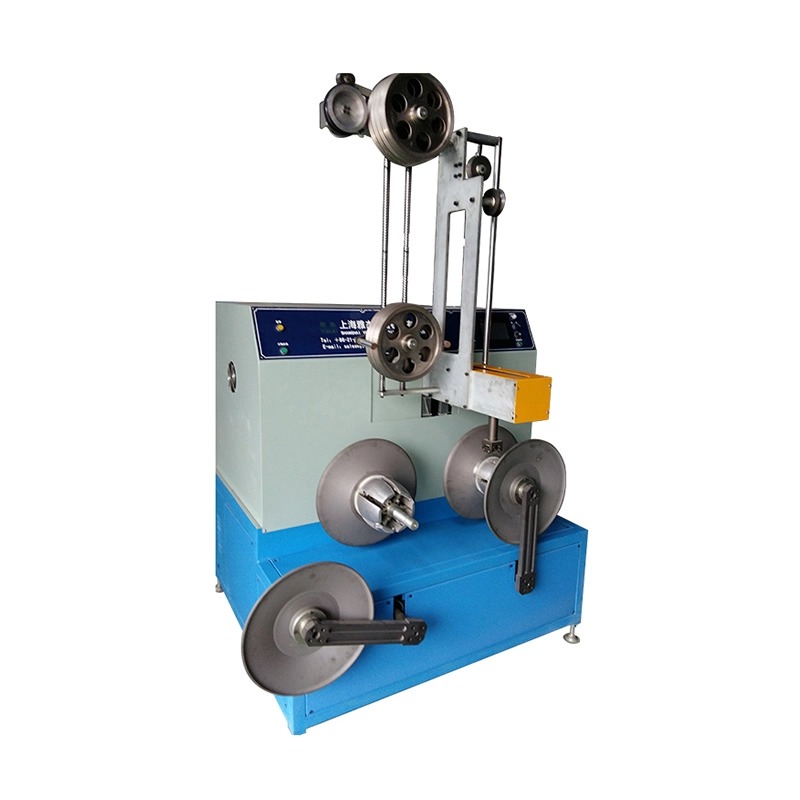

Cable Coiling Machine

Frequently Asked Questions (FAQ)

What is the difference between an automatic and a manual cable coiling machine?

An Automatic Cable Coiling Machine automates the feeding, coiling, and cutting process, often integrating PLC systems for precise control. Manual machines require human intervention at nearly every step and are best for low-volume or custom tasks.

Can these machines handle all cable types?

Not necessarily. While Industrial Cable Coiling Machines are versatile, some are specifically built for PVC, fiber optic, or armored cables. Always check the machine’s specifications before purchase.

How much space do these machines require?

A Small Cable Coiling Machine can fit on a workbench, while high-capacity models may require dedicated floor space and ventilation.

Are cable coiling machines expensive?

Prices vary depending on capacity, features, and brand. Entry-level small machines may cost a few thousand dollars, whereas high-performance industrial machines can range up to six figures.


Conclusion

As industries continue to scale and adopt smart manufacturing processes, manual cable coiling is becoming obsolete. The precision, speed, and safety offered by modern Cable Coiling Machines are irreplaceable, especially in demanding environments. Whether you’re working with PVC, industrial-grade, or small-diameter cables, there’s a machine built for your needs.
